Gemini Carver
Specifications
and Pricing

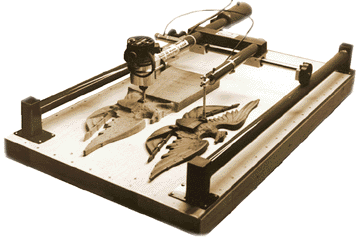

Gemini Universal Carver

Universal Carving Duplicator

 		WEIGHT
75 pounds (18" Model)
ROUTER
1 3/4 HP Porter Cable
(220V router available for additional $200)
CONSTRUCTION
Welded steel frame. Ball bearing pillow blocks on 1" hardened steel ground rod. Steel side rails. Sealed roller bearings. High quality urethane finish. Patented brake.
9" Universal Model (violins)
30" x 9" x 4 3/4" Maximum Workpiece Size
30" x 48-56" Table Top Size (table not included)
$2750.00
13" Universal Model (violins & violas)
30" x 13" x 4 3/4" Maximum Workpiece Size
38" x 48-56" Table Top Size (table not included)
$2950.00
18" Universal Model (violins, violas, cellos, guitars)
43" x 18" x 4 3/4" Maximum Workpiece Size
48" x 72" Table Top Size (table not included)
$3150.00
31" Universal Model (string bass)
52" x 31" x 4 3/4" Maximum Workpiece Size
75" x 80" Table Top Size (table not included)
Incorporates our patented hydraulic brakes and 3 rails, 3 1/4 HP router standard (220v not available). MORE INFO
$7295.00

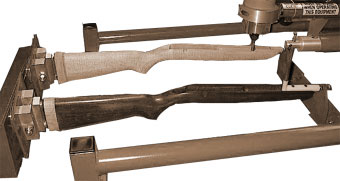

Gemini Gunstock Carver

Picture of Gemini Gunstock Carver

 WEIGHT
125 pounds
ROUTER
1 3/4 HP Porter Cable
(220V router available for additional $200)
CONSTRUCTION
Welded steel frame. Ball bearing pillow blocks on 1" hardened steel ground rod. Steel side rails. Sealed roller bearings. High quality urethane finish. Patented brake. Cast aluminium headstock and tailstock in rotary fixture.
Gunstock Carver
43" x 9" Diameter Maximum Workpiece Size
40" x 72" Table Top Size (table not included)
$5150.00


Power Package - PHX 3.25
"For the professional who wants the ultimate in cutting performance"
  • 3 1/4 HP Porter Cable Router
  • Rigid aluminum mounting bracket
  • Modified H-Frame
Only $425.00 in addition to the regular unit cost on any Duplicator

Just specify "PHX 3.25" when you place your order.

NOT AVAILABLE IN 220v

(Prices are in US Dollars and are subject to change without notice)
Please allow 4 weeks from receipt of deposit to delivery.




All Gemini Universal Carvers come with a Full 5-Year Warranty. We Use Porter-Cable Routers

All Gemini Universal Carvers come equipped with a router and a 3/4" carbide-tipped router bit. (Gunstock Carver comes with a 1/2" carbide-tipped router bit.) 1 (one) each Allen wrenches sizes 3/16" and 5/32", 2 (two) router wrenches, included with Router, and operating manual.

Purchase policy for carvers: 50% down, 50% prior to delivery (cashiers check, IMO, Visa/MC/AE)
Call for exact shipping/handling charges and accessories.
Additional shipping/handling changes for International Sales.
NY state residents - add your local sales tax to total cost (Item + s/h)
Custom Carvers available -- Will quote upon request.

All major credit cards acceptedFor ordering, shipping information, or any questions:
315-252-2559 or service@wood-carver.com
Ask for information on the Universal Carving Duplicator
